Solar Kits VSKW
Description

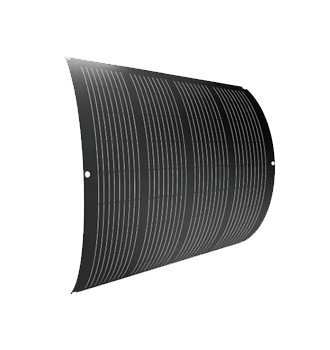

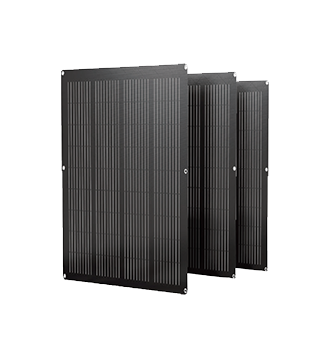

VSKW(VaySunic Solar Kits For Wagon Fit)series Solar On-Grid Kits for residential PV systems.  It is a “Plug-and-play design” composed of flexible solar panel + microinverter, which can be installed by yourself.

VSKW is even smaller in size and you can put it in the car for easier transportation.


Tech Specs

Panel Model:Flexible solar panel F200W-20M

Power(W):200W

Vmp(V):22.62

Voc(V):26.57

Isc(A):9.36

Imp(A):8.85

Dimensions(L x W x H)(mm):1130*900*2.5mm

PV module weight(kg):3.7kg

Output cables:2.5m㎡-50cm cables + mc4

MaxWind Load/Snow Load:2400Pa/5400Pa
